EW-resilient communication systems

Resilient communication for autonomous systems

Reliable control and telemetry links designed for UAVs and UGVs operating in contested electromagnetic environments.

Contact Us Explore Technology
Product

LR2021-based EW-resilient communication modules

RX, TX and custom relay boards built around our proprietary LR2021-based communication technology.


We are not building another ecosystem. We focus on one critical component: an EW-resilient communication module that UAV and UGV manufacturers can integrate into their existing platforms.

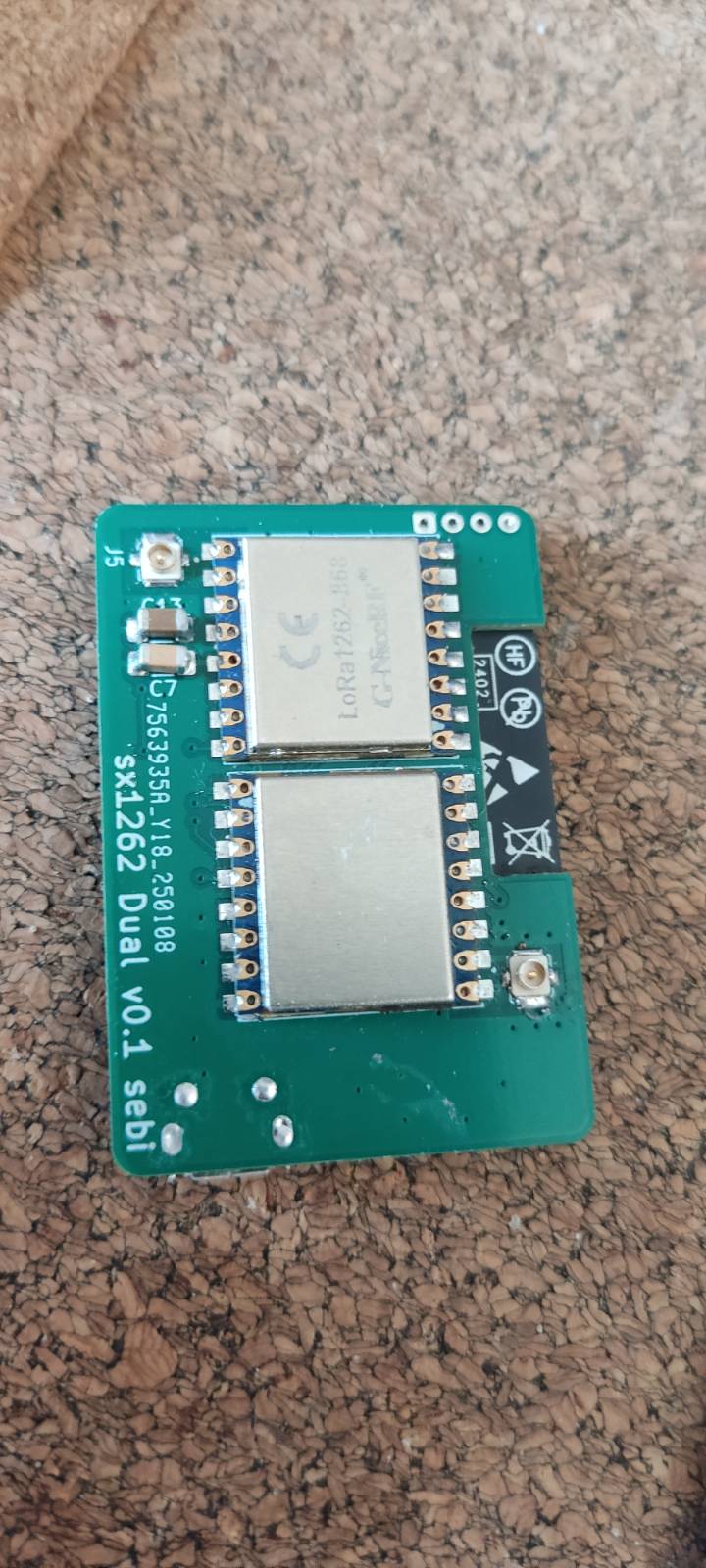

RX communication module with antenna
RX MODULE

Dual-band receiver

Designed to provide a resilient communication link between the operator and UAV or UGV platforms.

An optional True Diversity configuration with two receiver modules is also available.

Frequency
150–970 MHz
1.5–2.5 GHz
Sensitivity
Up to −140 dBm
RF
Optimized FHSS algorithms
Configuration
Optional True Diversity

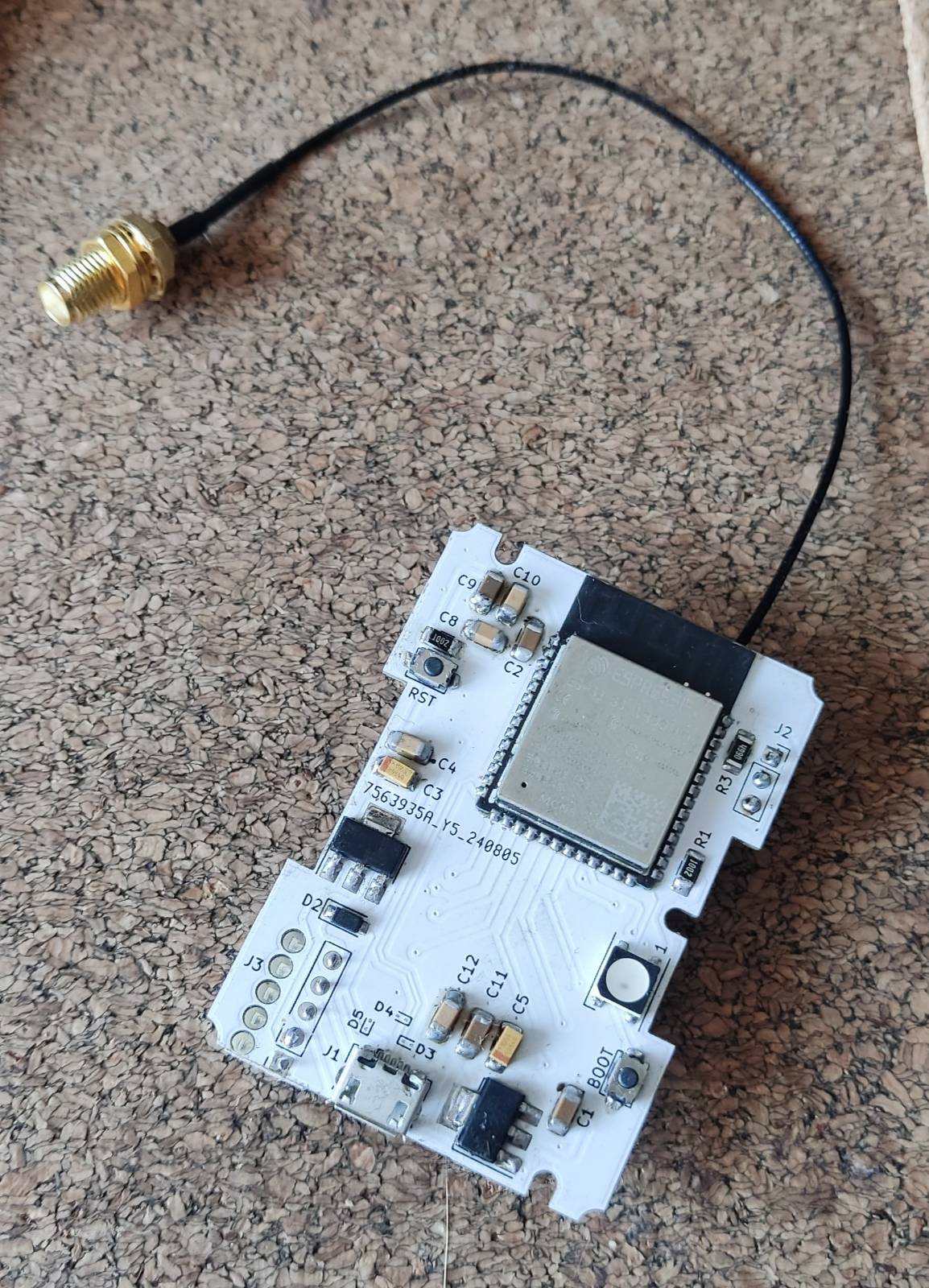

LR2021-based transmitter module
TX MODULE

Dual-band transmitter

Designed for resilient UAV and UGV control links, including multirotor and fixed-wing platforms, as well as UGVs.

Packet recovery and error correction enables recovery from corrupted or disrupted data packets.

Frequency
150–970 MHz
1.5–2.5 GHz
Max output power
Up to 33 dBm (2 W)
Frequency
Dual-band
Operation
Optional True Diversity

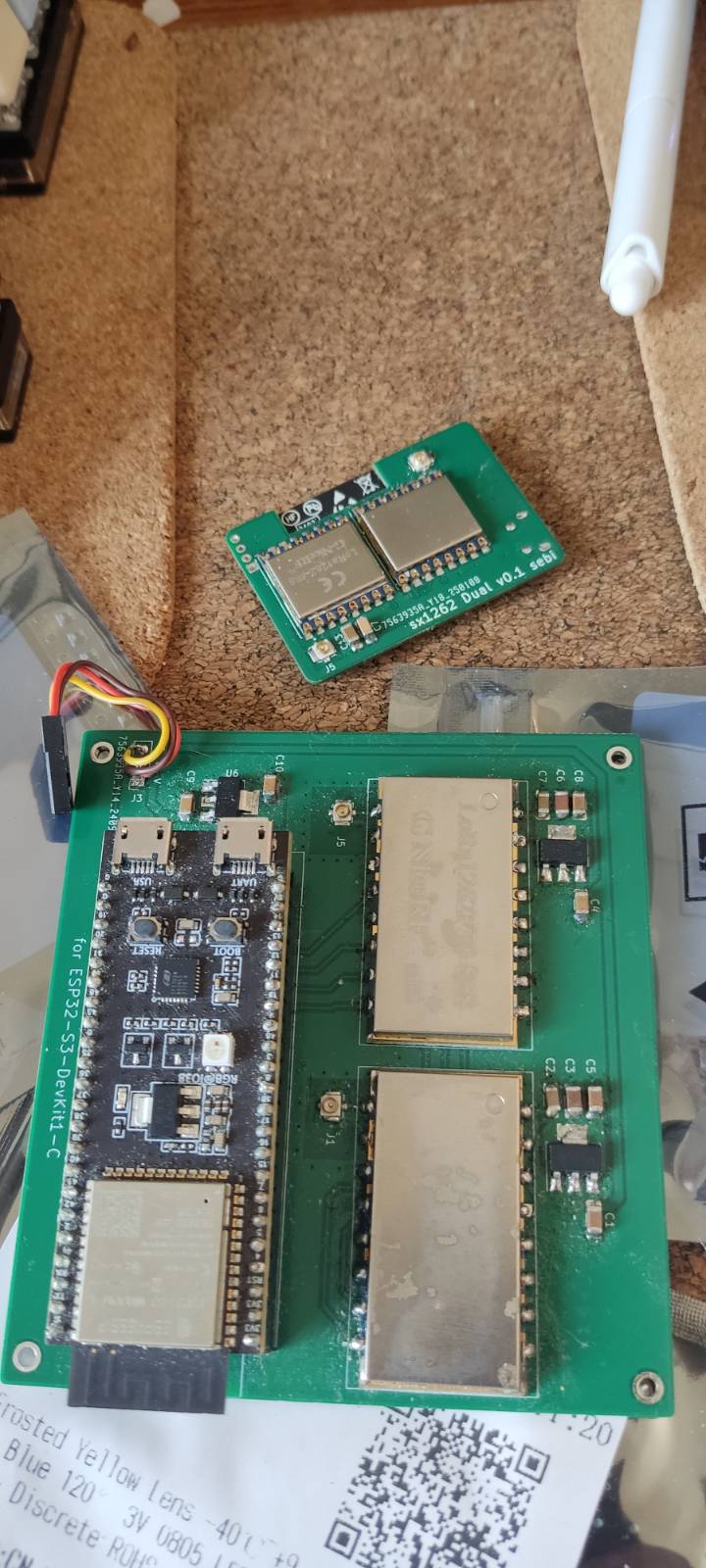

Custom relay board under test
CUSTOM RELAY BOARD

Platform-specific integration

Custom communication hardware designed for relay UAVs and other autonomous platforms.

Integration
Platform-specific
Hardware
Custom configuration
Core technology

LR2021 + proprietary firmware

Designed to integrate into existing platforms with no additional communication ecosystem.


We developed the first known firmware for the new Semtech LR2021 transceiver family, enabling its capabilities within an existing communication architecture.

SEMTECH LR2021
↓
DRONELAB FIRMWARE LAYER (ELRS/mLRS-like)
↓
EW-RESILIENT RX / TX MODULES
↓
INTEGRATED UAV / UGV / CUSTOM RELAY BOARDS

Extended RF operating range

Enables wider RF bandwidth options for improved communication resilience.

Improved receiver sensitivity

Supports more reliable communication over longer distances and under degraded RF conditions.

Packet recovery and error correction

Improves recovery from interference, RF noise and disrupted packets.

Optimized FHSS

Optimized frequency-hopping behavior for improved synchronization-channel resilience.

Anti-desynchronization

Improvements designed to reduce communication failures caused by interference.

Anti-unbinding

Improved link robustness under contested electromagnetic conditions.

Competitive advantage

Built for contested electromagnetic environments

DroneLab combines modern RF hardware and proprietary firmware to provide a more resilient communication link while remaining easy to integrate into existing UAV platforms.

FEATURE
DRONELAB
STANDARD FPV SYSTEMS
EW resilience
Designed for operation in contested electromagnetic environments. Field validation in EW conditions in progress.
Performance depends heavily on RF configuration, operator experience and platform implementation. New pilots lose 75% of drones to EW.
Setup complexity
Simplified setup with firmware-based configuration and automatic binding.
Manual TX/RX configuration is often required.
Training requirement
Designed to minimize setup and configuration requirements.
Higher dependence on operator knowledge and RF configuration skills.
Integration
Drop-in integration designed for existing UAV platforms.
Integration requirements depend on the manufacturer and communication ecosystem.
RF platform
Semtech LR2021-based communication platform.
Typically based on previous-generation RF solutions.
Anti-interference features
Optimized FHSS, packet recovery, error correction, improved synchronization and link robustness.
Capabilities depend on the specific communication system and implementation.
Pricing
RX modules from €40
TX modules from €100
Varies by manufacturer and configuration.
Field experience

Developed with operational feedback

Our communication modules are being developed in collaboration with UAV operators and engineers, tested in the field, and deployed across numerous UAV platforms. This experience directly influenced the new LR2021-based modules.

Partnerships & integration

Upgrade to a more resilient communication link

Interested in integrating, testing or deploying our technology?
